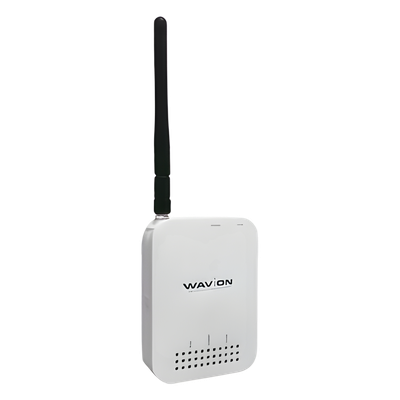

Repetidor de Señal Doble Zona de Wavion, ideal para cubrir zonas con baja señal en interiores.

$2,685.49 IVA incluido

Sin existencias

SKU: WCPE-24-DZR Categoría: Marca:

Descripción

Wavion WCPE-24DZ-SR is an indoor dual zone CPE for residential wireless broadband access.

The WCPE-24DZ-SR provides an extended and ubiquitous indoor coverage in a cost-effective price. The device is compact and easily self-installed, enabling also simple window mount.

As part of Wavion’s end-to-end-solution, the WCPE-24DZ-SR provides seamless dual zone connectivity – on one side to the Wavion base station and on the other side to the customer’s PC or laptop throughout the customer’s premise.

This dual zone capability simplifies the project roll out and enables product sales directly to the end user through retail stores. The WCPE-24DZ-SR full indoor coverage is achieved due to its high transmission power and sensitivity and due to its repeater functionality, which extends the Wavion’s base station coverage to all the rooms in the customer’s premise.

The WCPE-24DZ-SR is a key part of Wavion’s residential wireless broadband solution.

Together with the WBS-2400, the WCPE-24DZ-SR creates a highly cost-effective solution with unparalleled coverage and capacity.

General product details
  • Standards – Wireless: IEEE 802.11b/g/n
  • Channel Bandwidth: 20Mhz, 40Mhz for 802.11n
  • Data Rate: 802.11b: Up to 11Mbps
  •                         802.11g: 54Mbps
  •                         802.11n: 300 Mbps
  • Memory: 32MB SDRAM
  •                         16MB Flash
  • Interface: 1 port 10/100 Ethernet ports with auto-sensing MDIX
  • Antenna Type: 2 x 2.4Ghz 5dBi with RP-SMA connector
  • Frequency Range: 2400~2484 MHz (North America)
  • Channel: 1~11 channels (North America)
  • Emission Type: DSSS/OFDM
  • Total EIRP*: 34 dBm (OFDM, CCX and HT20/40 @ MCS0)

Sensitivity
  • 802.11b: 1Mbps: -101dBm
  •                         11Mbps: -91dBm
  • 802.11g: 6Mbps: -95dBm
  •                         54Mbps: -81dBm
  • 802.11n HT20: MCS0: -94dBm
  •                                      MCS7: -78dBm
  •                                      MCS8: -94dBm
  •                                      MCS15: -75dBm
  • 802.11n HT40: MCS0: -93dBm
  •                                      MCS7: -75dBm
  •                                      MCS8: -91dBm
  •                                      MCS15: -72dBm

HARDWARE
  • LEDs status: Power/Status, LAN, WLAN, Signal strength
  • Data modulation type: BPSK, QPSK, CCK and OFDM
  • Power Supply: 12V, 1A, PoE
  • Security: Open, WEP (64-bit / 128-bit), WPA and WPA2 – personal
  • Management: SNMPv2c, Standard HTTP/HTTPS
  • QoS: WMM classification, DSCP and P-Bit 802.1P classification
  • Protection mode: CTS-RTS, Self-CTS, RTS threshold
  • Tunneling: PPPoE, VPN pass-through, IPSec, L2TP
  • Filtering: Support MAC ACL
  • Traffic shaping: Downlink and uplink bandwidth control
  • Client Stations Supported: 10

Environmental Specifications
  • Humidity: 5%~98% non-condensing
  • Operating temperature: 0°C ~ +40°C
  • Storage: -10°C ~ +65°C

Approvals and Certifications
  • FCC CFR 47 part 15
  • ETSI EN300328, EN301489
  • CE, ROHS, WEEE
  • Wi-Fi Certification
